Case Studies

Berry Farmhouse

Architect: Saturday Studio
Builder: Lime Building Group
System: Integrated heating and cooling
Capacity: 68kW

Project brief/scope:

  • Hydronic underfloor heating
  • Architectural hydronic radiators
  • Space Heating and cooling via concealed packaged water to air units
  • Pool heating
  • Potable hot water heating

CWL Group provided an alternative solution to conventional heating and cooling systems for an energy-conscious client with site-specific governing factors such as:

  • Main natural gas not available and difficult site access for LPG delivery
  • Limited power supply due to the rural location
  • Site reliance on solar PV and batteries
  • High heating and cooling loads due to a high glazing ratio

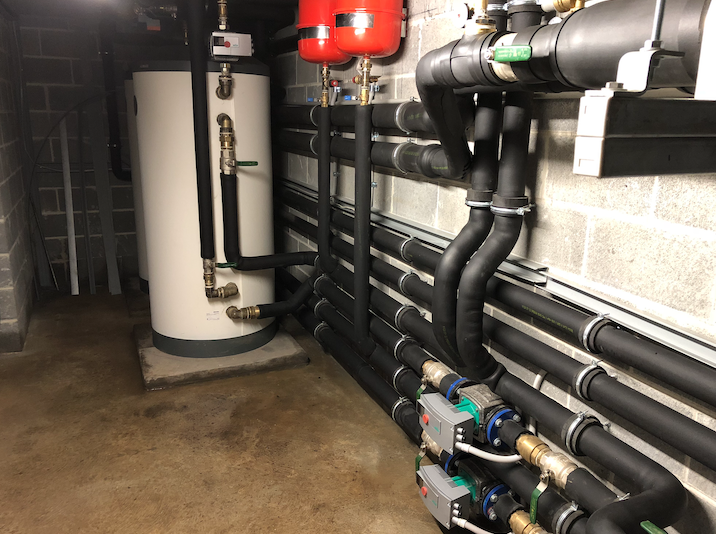

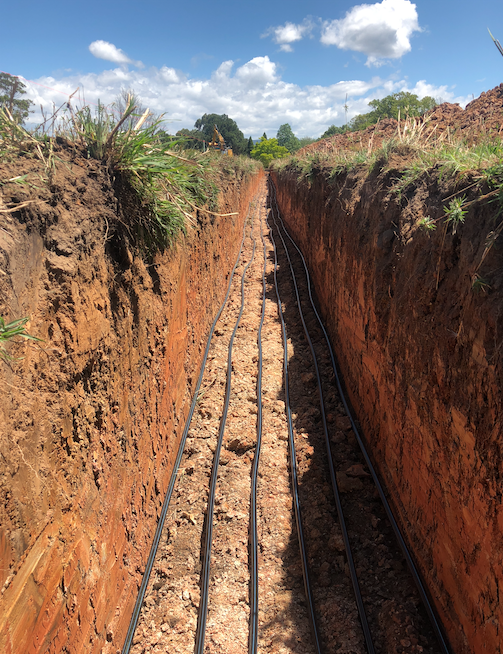

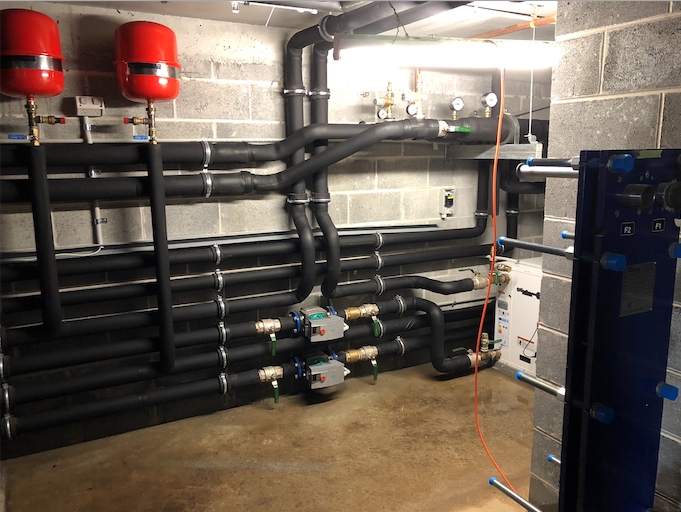

A cost-effective, efficient geothermal heating and cooling system was designed and installed by CWL Group to overcome site limitations using a combination of water to water ground source heat pumps and packaged water to air-ground source heat pumps coupled with a horizontal ground heat exchanger installed in an adjacent cow paddock. Inevitable mains power supply upgrade to the new build was avoided due to higher equipment COP (coefficient of performance) and was designed to fit within the existing power supply parameters resulting in considerable overall construction cost savings. Two years on, and the homeowner is enjoying a comfortable and efficient heating and cooling system with minimum maintenance.

More Advice

Ground Source Heat Pumps

The advantage of using a ground source heat pump is its efficiency. Ground source heat pumps take heat from the ground, raise its temperature and use the energy to heat your property.
See More

How does a Ground Source Heat Pump work?

The basic principles of a closed-loop GSHP system begins with the absorption of heat from the ground heat source. The temperature of the earth at one metre below ground level remains...
See More

More Case Studies

Bellevue Hill
Gym Pavilion

One of our Award-winning Projects, Double Bay is a high-end architectural house...
See More

The Farm

A cost-effective, efficient integrated hydronic heating system was designed and installed by CWL Group to overcome various site limitations ...
See More
